It is manufactured from solid forged rounds of alloy steels and heat treated fully. Caps are of quick lock type fitted with swivel chain arrangement. Cementing Head could be of single plug or double plug types. Employed for cementing the annular space in well construction, to link the pumps of cement trucks to the casing string and provides access for insertion of cementing plugs. The sizing is inversely proportional to working pressure.
Features:
• Continuous Operation.
• Manifold with low torque plug valve.
• Easy loading of plugs.
• Monitors the position of top plug.
• Adapters available with different casing threads.

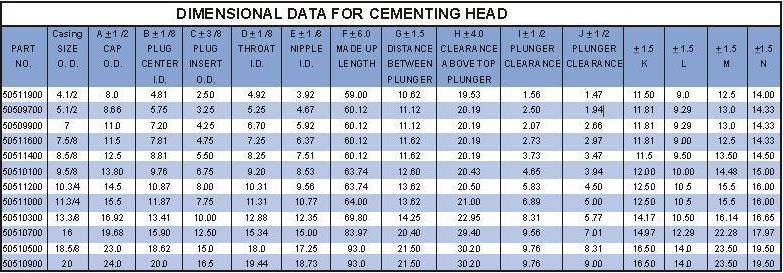

We supply cementing heads from 4 1/2" to 20" for working pressure of 2,000 to 10,000psi.
